1
Sensor Mode
Wake · Read · Upload · Sleep
Low-power scheduled sensing for solar installations and extended backup endurance.
Flagship product platform

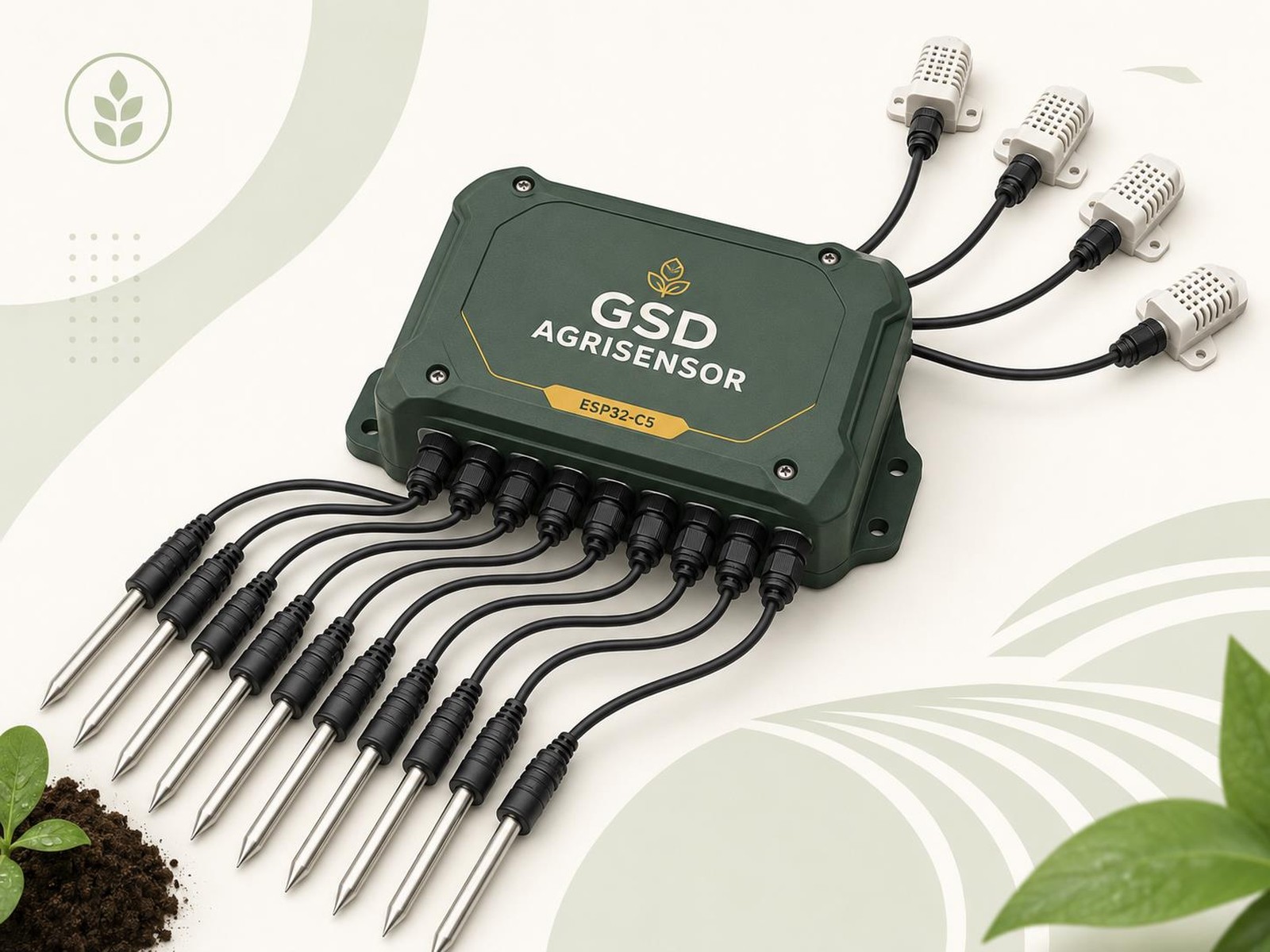

GSD Agrisensor
Sensing | Control | Gateway
Eight soil channels, four climate channels, four low-voltage relay outputs and local automation in an IP65 custom housing configured with customer input.
GSD-Agrisensor-4TH-8SH-4R
One controller. Multiple measurement points. Better decisions.
One field-ready controller combines multi-point soil and climate sensing, local automation, backup power and modern connectivity for irrigated agriculture.
One control engine. Three ways to run.
2
Relay / Gateway Mode
Continuous local automation and connectivity for pumps, valves, fans, lights and supported gateway functions.
3
Offline Mode
No coverage? Keep working. Readings, alarms and automation actions are timestamped and stored locally for CSV download.
Sensesoil, climate and device inputs
Deciderules, thresholds and time windows
Actrelay outputs and controlled equipment
Recordlocal logs and CSV records

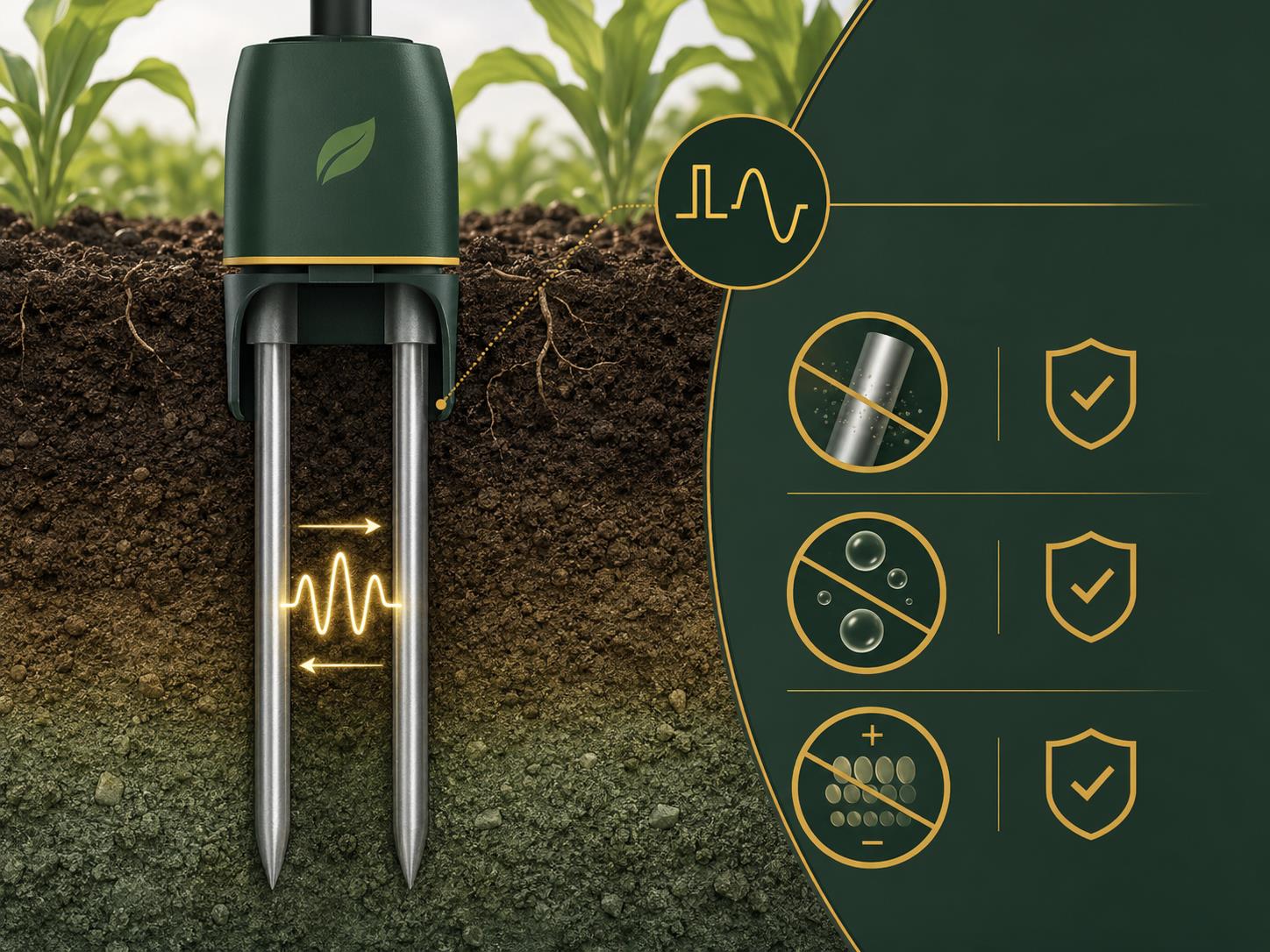

Advanced soil monitoring
Eight independent AC-excited channels
- Reduced probe polarisation
- Reduced electrolysis
- Reduced long-term corrosion
- More stable and repeatable readings
Calibration: Each channel is calibrated independently using dry and wet reference points. The resulting percentage is a practical irrigation-management scale, not laboratory volumetric water-content measurement.
Control and integration
Connect the field. Keep control local.
Four low-voltage control outputs connect to a separate compatible external relay module for pumps, valves, fans, lights and other controlled loads.
Wi-Fi, MQTT, the GSD Dashboard and Home Assistant provide open integration paths. IEEE 802.15.4 hardware supports project-specific Thread/Matter firmware packages where validated.
Built-in
8 soil channels · 4 DHT22 channels · local rules · backup power · Wi-Fi · MQTT
Project dependent
Relay modules · Home Assistant · Thread/Matter gateway functions · third-party devices
Home Assistant
See a working local dashboard
View demonstration soil, climate, relay and system entities inside a read-only Home Assistant environment.
The demo URL must be added in DEMO-LINK-SETUP.txt before this button is enabled.
Battery backup and performance
Approximately 3,000 mAh 18650 backup battery
Development testing has demonstrated approximately 30 hours of continuous operation in a specific configuration while evaluating automation rules every 10 seconds.
Runtime depends on reporting interval, Wi-Fi signal, sensor configuration, battery condition, sleep current and active gateway functions. The battery is intended as backup power, not the primary operating supply.
Product specification summary
| Feature | Specification |
|---|---|
| Product | GSD-Agrisensor-4TH-8SH-4R |
| Main chipset | Espressif ESP32-C5 platform |
| Inputs | 8 soil-probe channels + 4 DHT22 channels |
| Control | 4 low-voltage relay outputs for a separate relay module |
| Connectivity | Wi-Fi, MQTT, GSD Dashboard and Home Assistant integration |
| Thread / Matter | Hardware-ready; supported functionality enabled by firmware and project configuration |
| Power | Permanent mains or engineered solar supply with 18650 backup battery |
| Enclosure | IP65 custom housing, configured with customer input |
| Calibration | Individual on-device soil-probe calibration |
| Consumables | Replaceable probes, DHT22 assemblies, field cables and connectors |
Specifications, runtime estimates, wireless range and third-party integrations remain subject to final hardware, firmware, installation conditions and project validation. Images are illustrative.
